Modified a Behringer pedal to work with Kronos (and my DX7)

Post by ScoobyDoo555 »

An FS112V to be precise. Commonly used as a program up/down pedal for a V-Amp.

I've modified one to act as a double switch for Kronos and my DX7s.

What I wanted was a pedal to compliment my Korg Sustain pedal (used on Kronos). Ideally, a pedal that could act as sustain on my DX7 (which is running as a MIDI master for additional channels in Kronos under Combi mode) and an assignable foot switch.


The awkward bit is that the DX7 requires a CLOSED switch for sustain (ie the circuit is closed until you press the switch, thus opening the circuit, creating sustain).
This was fun - I ended up using an electrical switch - the kind used as emergency stop buttons in workshops!! :lol: overkill, but the switch won break.

To fix it to the case, I've used superglue (might up rate this "no more nails").

So the sustain works! :lol:

The additional footswitch cool too.

The ORIGINAL cabling is based around a balanced cable (ie Tip Ring Sleeve 1/4" connection - 3 connections: +ve, -ve & earth)

As it stands, I've cut the connector off, and re-soldered an unbalanced/mono connector and used +ve and 1/2 of the earth cable for the sustain.

The -ve and the remaining earth have been re-spliced into a 1/4" socket (unbalanced) and feed the other switch.


Currently, the configuration is -

Sustain - DX7s (midi controlling Kronos)
Footswitch - connected to "Switch" and controlling SW1 (from the Global page)

Works FANTASTICALLY!!!.

Pics to follow.

Dan :)
Yamaha SY77 & KX88, SSL Nucleus, Korg Kronos 61, Wavestation A/D, Access Virus B, Roland XP30, DeepMind12D, System 1m, V-Synth XT, Focusrite Red16Line, Unitor 8, Akai S3000 XL, Alesis Quadraverb+, Focal Shape Twins, Full fat iMac, Logic Pro X, ProTools 2021, loadsa plugins.
ScoobyDoo555
Platinum Member
Posts: 837
Joined: Sat Jan 12, 2008 4:13 pm
Location: Herefordshire, UK
Contact:

Post by ScoobyDoo555 »

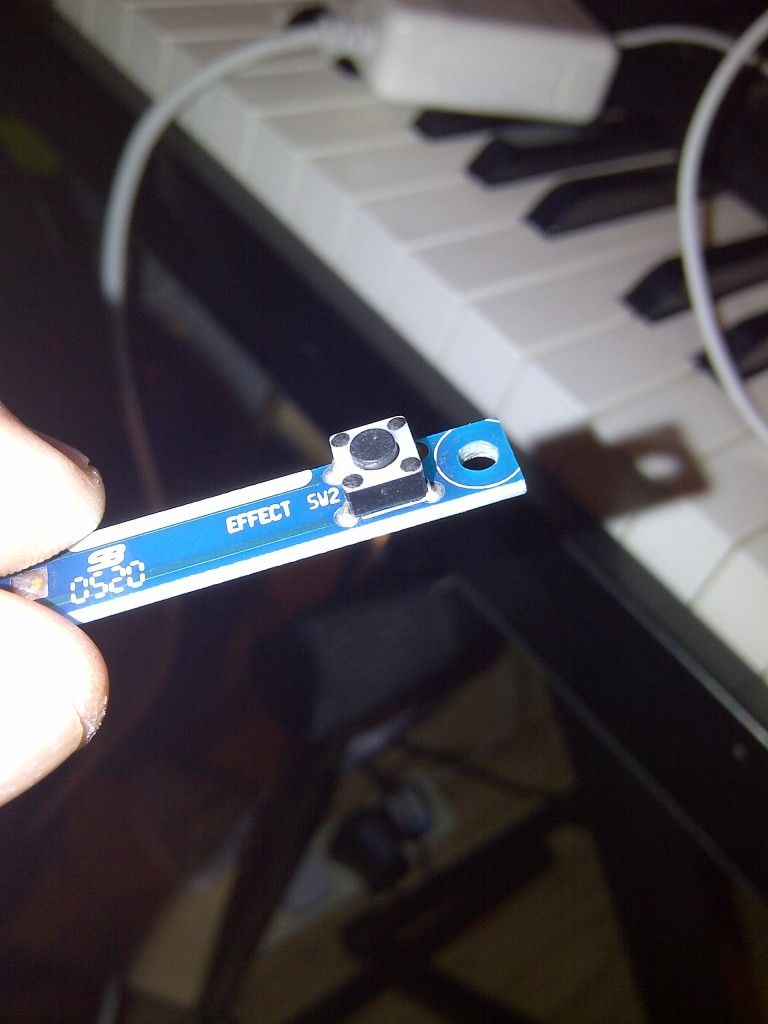

Here's the original switch - can't be used on the DX7 because of it's internal configuration.

Here's the pedal (built like a brick sh1thouse - quite novel for Behringer!!)

Here's the new connection:


The silver connector plugs into the Sustain on the DX7s (my top tier), and the orange cable is a patchlead (you can see the 1/4" socket) - this connects into the Switch socket on the Kronos.

I've put it on 1/4" socket as I like the option of controlling anything from that switch.

And the whole point behind doing this?

Why not!!!! :lol: 8)

Very easy to do, and a bit of a laugh!


Soon to be posted - my bespoke keyboard stand LEDs to light up the sliders on Kronos :wink:

Dan :lol:
Yamaha SY77 & KX88, SSL Nucleus, Korg Kronos 61, Wavestation A/D, Access Virus B, Roland XP30, DeepMind12D, System 1m, V-Synth XT, Focusrite Red16Line, Unitor 8, Akai S3000 XL, Alesis Quadraverb+, Focal Shape Twins, Full fat iMac, Logic Pro X, ProTools 2021, loadsa plugins.
ScoobyDoo555
Platinum Member
Posts: 837
Joined: Sat Jan 12, 2008 4:13 pm
Location: Herefordshire, UK
Contact:

Post by ScoobyDoo555 »

Oh yeh, also need to rename the pedals!!! :oops:
